STRØMRELÉ STRØMTRAFO M/GR. VERDI
Product number
4134964

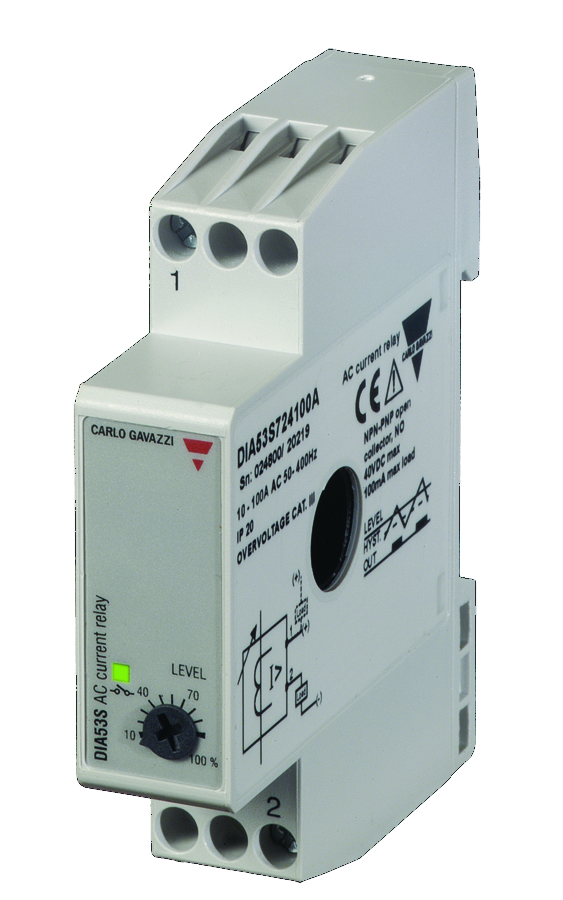

DIA53S724100A Strømrelé
Strømtransformator med grenseverdi. Måleområde 100 A. Åpen kollektor utgang maks. 40VDC/ 100mA. Modulærutførelse med byggebredde 1-modul.
Product details
Technical specifications
Type of electric connectionScrew connection
With detachable clampsfalse
Current measuring range10 ... 100 A
Single-phase under current possiblefalse
Three-phase under current possiblefalse
Single-phase overcurrent possibletrue
Three-phase overcurrent possiblefalse
Single-phase hysteresis possibletrue
Three-phase hysteresis possiblefalse
Contains function DC-voltage under currentfalse
Contains function DC-voltage overcurrenttrue
Function DC-current hysteresisfalse
Min. adjustable delay-on energization time0.3 s
Max. permitted delay-on energization time0 s
Min. adjustable off-delay time0 s
Product codes
SAPCLU299
PLC4134964
STK4134964
GTIN/EAN8030956007916
Manufacturer part numberDIA53S724100A
Vendor material numberDIA53S724100A
Basic information
Package measurements (L x W x H)73 x 99 x 24 mm
Package volume0.173 l
Package weight0.08 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandCARLO GAVAZZI
