SPDM24501 (POWER SUPPLY)
Product number
8200423

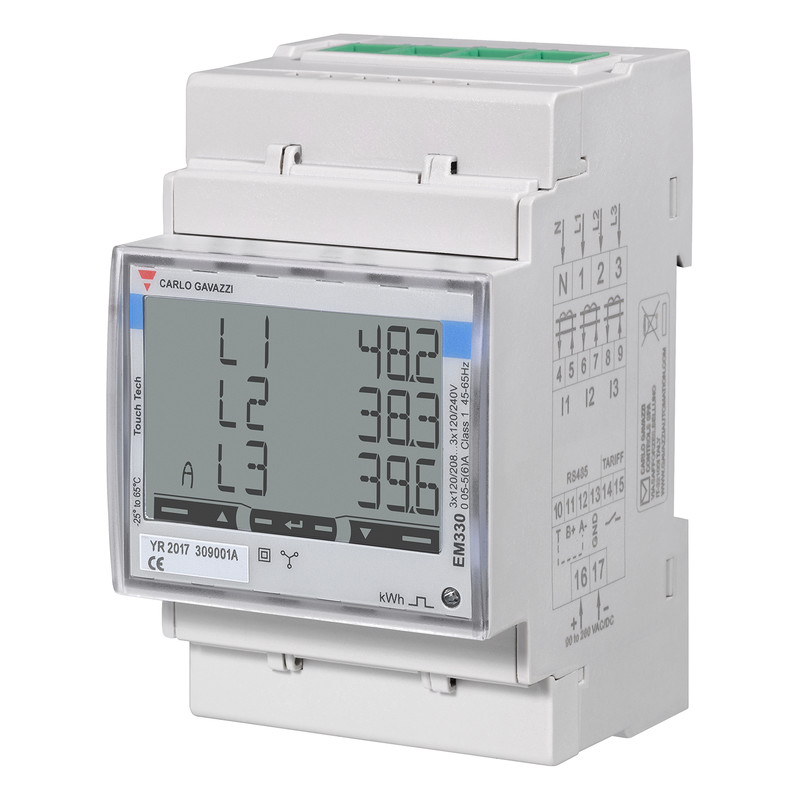

EM330DINAV53HS1X Energimåler
Energimåler/kWh-måler. 3-fase måler 230/400VAC for måling via strømtransformatorer. Tilgang til alle relevante elektriske verdier som A, V, W, VAr, VArh, cos. phi. osv. Med RS485 Modbus gr.snitt. Bakgrunnsbelyst LCD touch display. Modulærutførelse 3-moduler.
Product details
Technical specifications
Type of meterElectronic
Nominal current (In)5 A
Max. current (Imax)6 A
Nominal voltage (Un) N-L230 ... 277 V
Nominal voltage (Un) L-L400 ... 480 V
Frequency45 ... 65 Hz
Accuracy classB
Pole typeThree conductor/four conductor
ModelMeasurement transformer
Energy typeEffective power and blind power
Suitable forPurchase/supply
Tariff typeTwo-tariff
Tariff controlExternal
Measurement type load profilefalse
Escapement mechanismtrue
Product codes
SAPCFA526
PLC8200423
STK8200423
GTIN/EAN8030956069877
Manufacturer part numberEM330DINAV53HS1X
Vendor material numberEM330DINAV53HS1X
Basic information
Package measurements (L x W x H)140 x 107 x 70 mm
Package volume1.049 l
Package weight0.2 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC41113640
BrandCARLO GAVAZZI
