MÅLEVERDIOMFORMER 1X10V
Product number
8200735

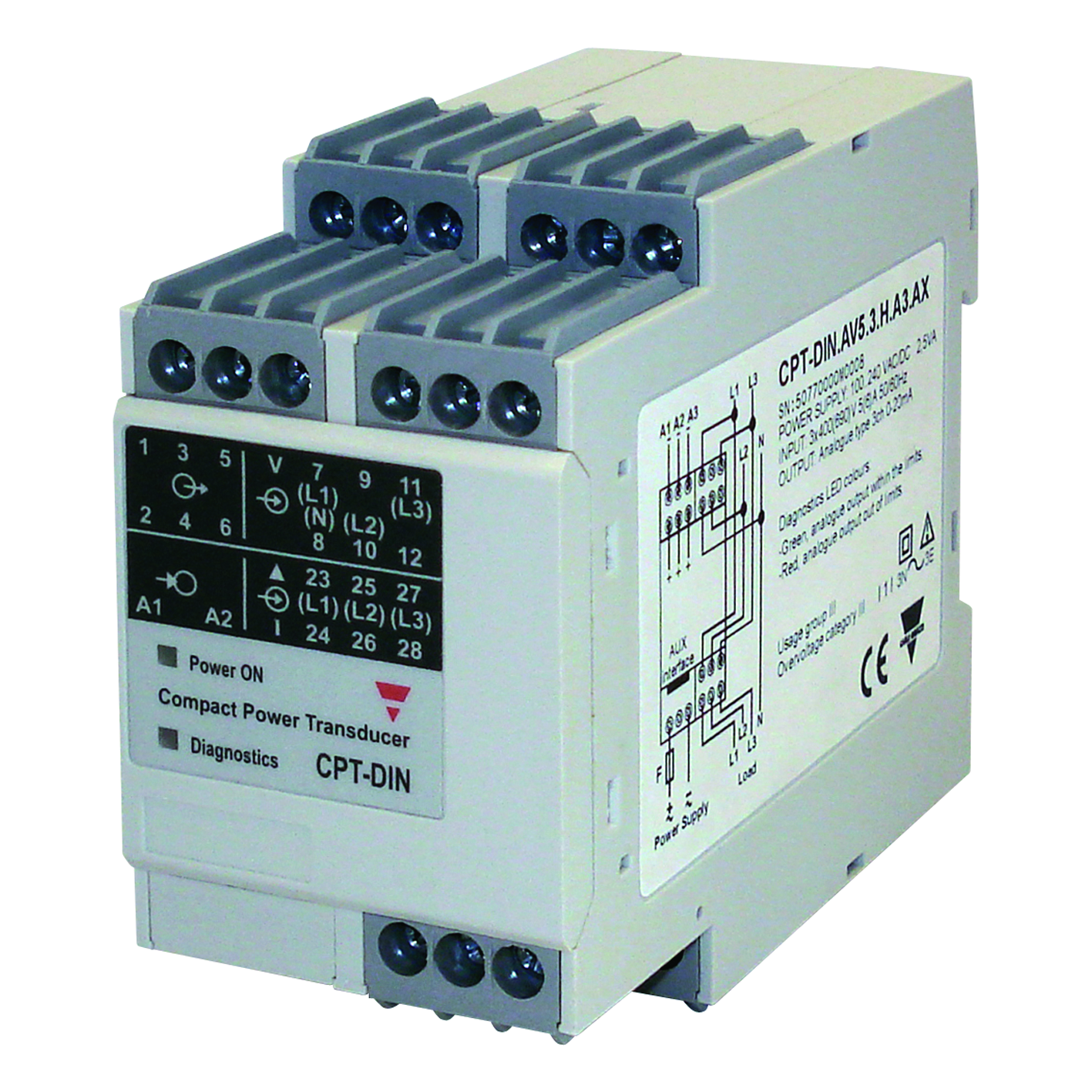

Måleverdiomformer CPTDINAV53HV1AX
Programmerbar måleverdiomformer. For 3-fase usymmetriske nett. Måler alle relevante verdier på elektriske nett som V, A, W, Var, VA, Cos. phi osv. 1 programmerbar analog utgang 10VDC. For DIN-skinne montasje med byggebredde 45mm. Hjelpespenning 90-260VAC/DC.
Product details
Technical specifications
Measuring range effective power0 kW
Nominal measuring voltage690 V
Rated current In5 A
Type of analogy output0 - 10 V
Number of phases3
Modular versionfalse
Initial value measuring range (capacitive)0
End value measuring range (inductive)0
Product codes
SAPCMD570
PLC8200735
STK8200735
GTIN/EAN8030956032079
Manufacturer part numberCPTDINAV53HV1AX
Vendor material number8200735
Basic information
Package measurements (L x W x H)105 x 100 x 50 mm
Package volume0.525 l
Package weight0.24 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandCARLO GAVAZZI
