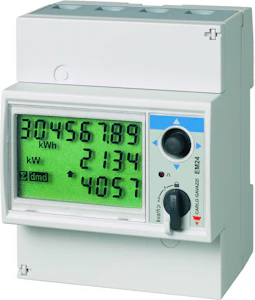

ENERGY METER EM24 3V 65A lk B 4-DIN E1
Product number
8200702
EM24DINAV23XE1X
Energimåler/kWh-måler. 3-fase direkte måler 230/400VAC, maks. last 65AAC. Tilgang til alle relevante elektriske verdier som A, V, W, VAr, VArh, cos. phi. osv. Med RS485 Modbus grensesnitt. Bakgrunnsbelyst LCD display. Modulærutførelsemed byggebredde 4-moduler.
Product details
Technical specifications
With displaytrue
Type of displayLCD
Display diagonal2 cm
Type of primary energyCurrent
Suitable for integration of actuatorstrue
Suitable for integration of vehicle charging stationtrue
Nominal voltage400 V
Nominal frequency40 ... 60 Hz
Min. depth of built-in installation box70 mm
Product codes
SAPCGR746
PLC8200702
STK8200702
GTIN/EAN8030956085235
Manufacturer part numberEM24DINAV23XE1X
Vendor material number8200702
Basic information
Package measurements (L x W x H)90 x 66 x 72 mm
Package volume0.428 l
Package weight0.443 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC41113640
BrandCARLO GAVAZZI
