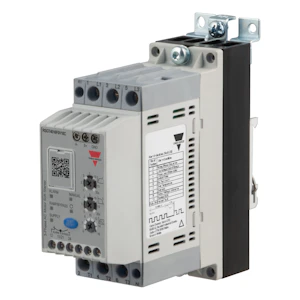

3-fase mykstarter 16A 230-400V
Product number
4115403
3-fase mykstarter 16A 230-400V For generell drift
Kompakt mykstarter med Modbus kommunikasjon for generell drift av 3-fase motorstyring. 220-400V. Nominell strøm 16A. 24 VAC/DC styresignal. Innbygget bypass rele og elektronisk motorvern, med justerbar rampe opp/ned. DIN-skinne feste og statusindikering vha. lysdioder i front. Beskyttelsesgrad IP20. 20 sek rampetid.
Product details
Technical specifications
Rated operation current Ie at 40 °C Tu16 A
Rated operating voltage Ue187 ... 440 V
Rated power three-phase motor, inline, at 230 V4 kW
Rated power three-phase motor, inline, at 400 V7.5 kW
Rated power three-phase motor, inside delta, at 230 V0 kW
Rated power three-phase motor, inside delta, at 400 V0 kW
FunctionSingle direction
Internal bypasstrue
With displayfalse
Torque controltrue
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz21.6 ... 26.4 V
Rated control supply voltage AC 60 Hz21.6 ... 26.4 V
Rated control supply voltage DC21.6 ... 26.4 V
Voltage type for actuatingAC/DC
Product codes
SAPDAH674
PLC4115403
STK4115403
GTIN/EAN5350035435892
Manufacturer part numberRSGT4016F0V10C
Vendor material number4115403
Basic information
Package measurements (L x W x H)137 x 45 x 149 mm
Package volume0.919 l
Package weight0.85 kg
Base uniteach
Package units1
Usage quantity–
BrandCARLO GAVAZZI
