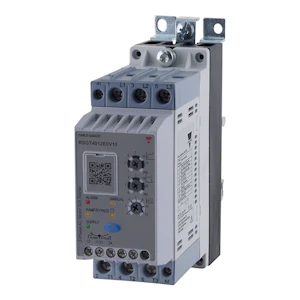

3-FASE MYKSTARTER 16A 230-400V
Product number
4100892
Mykstarter for generell drift RSGT4016F0V10
Kompakt mykstarter for generell drift av 3-fase motorstyring. Innbygget bypass rele og elektronisk motorvern, med justerbar rampe opp/ned samt momentstyring. DIN-skinne feste, og statusindikering vha. lysdioder i front. Beskyttelsesgrad IP20. Integrert bypass rele. 20 sek rampetid.
Product details
Technical specifications
Rated operation current Ie at 40 °C Tu16 A
Rated operating voltage Ue187 ... 440 V
Rated power three-phase motor, inline, at 230 V4 kW
Rated power three-phase motor, inline, at 400 V7.5 kW
Rated power three-phase motor, inside delta, at 230 V0 kW
Rated power three-phase motor, inside delta, at 400 V0 kW
FunctionSingle direction
Internal bypasstrue
With displayfalse
Torque controltrue
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz0 ... 0 V
Rated control supply voltage AC 60 Hz440 ... 934 V
Voltage type for actuatingDC
Integrated motor overload protectiontrue
Product codes
SAPDAH668
PLC4100892
STK4100892
GTIN/EAN5350035435113
Manufacturer part numberRSGT4016F0V10
Vendor material number4100892
Basic information
Package measurements (L x W x H)137 x 45 x 125 mm
Package volume0.771 l
Package weight0.853 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandCARLO GAVAZZI
