IPS AUSU 316RAU9 IP44
Product number
1547412

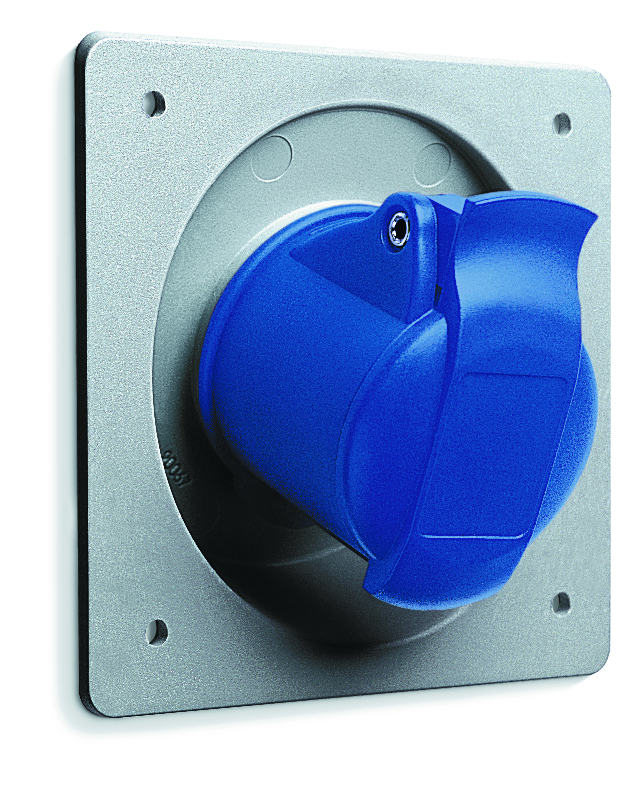

IPS AUSU 316RAU9 PANEL-STIKKONTAKT IP44
HAUGE AUSU 316-9 IP44 HAUGE innfelt stikkontakt AUSU 316-9
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)16 A
Voltage according to EN 60309-2230 V (50+60 Hz) blue
Rated voltage200 ... 200 V
Rated frequency50 ... 50 Hz
Number of poles4
Clock hour position9 h
Identification colourBlue
RAL-number7001
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionAngled
MaterialPlastic
Surface treatment contactsUntreated
Military modelfalse
Product codes
SAPGAQ172
PLC1547412
STK1547412
GTIN/EAN7392696932288
Manufacturer part number2CMA193228R1000
Vendor material number2CMA193228R1000
Basic information
Package measurements (L x W x H)98 x 110 x 110 mm
Package volume1.186 l
Package weight0.22 kg
Base uniteach
Package units10
Usage quantity1
UNSPSC39121413
BrandAMPHENOL
