IPS AUE 316R11 IP44
Product number
1547314

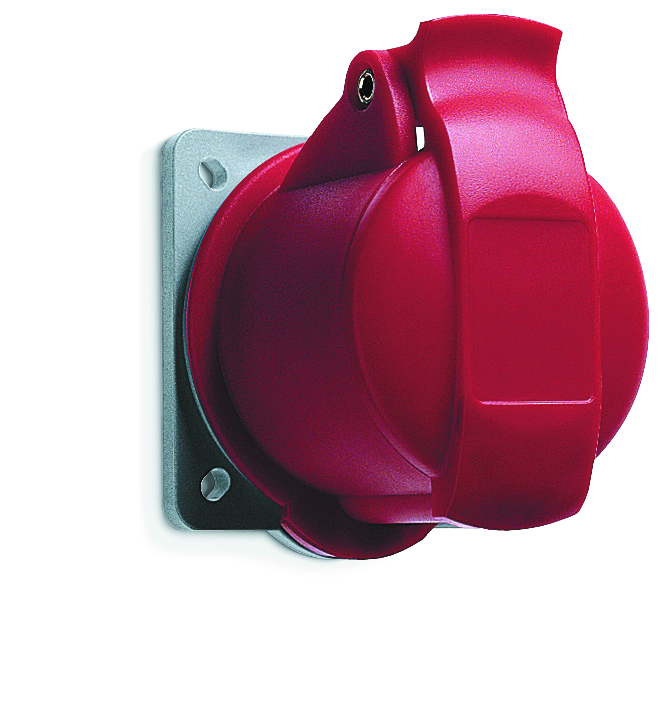

IPS AUE 316R11 PANEL-STIKKONTAKT IP44
HAUGE AUE 316-11 IP44 HAUGE innfelt stikkontakt AUE 316-11
Product details
Technical specifications
IEC-amperage16 A
Amperage according to UL/CSA (for UL-version)16 A
Voltage according to EN 60309-2400-440 V (50+60 Hz) red
Rated voltage440 ... 460 V
Rated frequency60 Hz
Number of poles4
Clock hour position11 h
Identification colourRed
RAL-number7001
Degree of protection (IP)IP44
Connection systemScrewed terminal
Insert directionStraight
MaterialPlastic
Surface treatment contactsUntreated
Military modelfalse
Product codes
SAPGAQ176
PLC1547314
STK1547314
GTIN/EAN7392696931588
Manufacturer part number2CMA193158R1000
Vendor material number2CMA193158R1000
Basic information
Package measurements (L x W x H)88 x 66 x 87 mm
Package volume0.505 l
Package weight0.17 kg
Base uniteach
Package units10
Usage quantity1
UNSPSC39121413
BrandAMPHENOL
