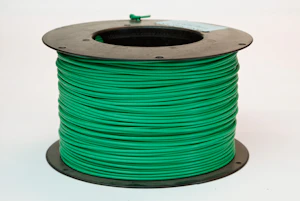

TEXILINE HF90 1KV 1,5MM² GRØNN
Product number
1048439
Halogenfri koblingsledning, mangetrådet og fortinnet 0,6/1kV
TEXILine HF90 er en 90°C, 0,6/1kV halogenfri, flammehemmet og fortinnet koblingsledning spesielt designet for skip og offshore bruk. Godkjent av DNV GL.
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceTinned
Nominal cross section conductor1.5 mm²
AWG size16
Nominal cross section conductor (AWG)3 kcmil
Diameter conductor1.5 mm
Conductor categoryClass 5 = flexible
Number of cores1
Twisted coresfalse
Material core insulationOther
Specification core insulationOther
Core identificationColour
Core colourGreen
Max. conductor temperature90 °C
Screenfalse
Product codes
SAPDBJ884
PLC1048439
STK1048439
GTIN/EAN7340060504418
Manufacturer part number7340060504418
Vendor material number1048439
Basic information
Package measurements (L x W x H)1000 x 2.9 x 2.9 mm
Package volume0.008 l
Package weight0.02 kg
Base unitm
Package units1
Usage quantity–
UNSPSC26121651
BrandAMOKABEL
