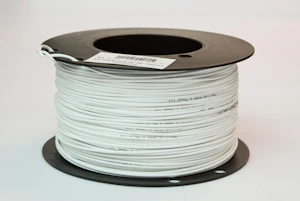

TEXILINE 1,5MM² HVIT MTR. AMO SPESIALKABEL
Product number
1048432
Halogenfri koblingsledning, mangetrådet og fortinnet 0,6/1kV
TEXILINE HF ER EN 125GR C, 0,6/1kV HALOGENFRI, FLAMMEHEMMET OG FORTINNET KOBLINGSLEDNING SPESIELT DESIGNET FOR SKIP OG OFFSHORE BRUK. GODKJENT AV DET NORSKE VERITAS
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceTinned
Nominal cross section conductor1.5 mm²
AWG size16
Nominal cross section conductor (AWG)3 kcmil
Diameter conductor1.5 mm
Conductor categoryClass 5 = flexible
Number of cores1
Twisted coresfalse
Material core insulationOther
Specification core insulationOther
Core identificationColour
Core colourWhite
Max. conductor temperature90 °C
Screenfalse
Product codes
SAPGAA506
PLC1048432
STK1048432
GTIN/EAN7340060504340
Manufacturer part number7340060504340
Vendor material number1048432
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.1 kg
Base unitm
Package units150
Usage quantity1
UNSPSC26121500
BrandAMOKABEL
