SAMLESKINNE 3 FAS + HJ, 46MOD 2CDL230006R1646
Product number
1665939

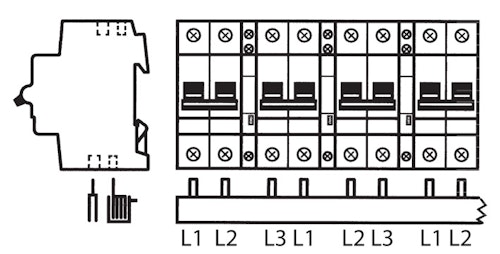

Samleskinne, L1,L2,H,L3,L1,H.. 46mod, 16mm2
Skinne, L1,L2,H,L3,L1,H..46mod Skinne, PS3/46/16H-IT
Product details
Technical specifications
Number of phases3
Number of poles46
Suitable for number of devices15
Module width17.5 mm
Cross section16 mm²
Length1004 mm
Width in number of modular spacings58
Rated permanent current Iu80 A
Type of electric connectionPin
Insulatedtrue
Rated surge voltage4 kV
Max. rated operation voltage Ue690 V
Rated short-time withstand current lcw25 kA
Suitable for devices with N-conductorfalse
Suitable for devices with auxiliary switchtrue
Product codes
SAPGBW187
PLC1665939
STK1665939
GTIN/EAN4016779662109
Manufacturer part number2CDL230006R1646
Vendor material number2CDL230006R1646
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.2 kg
Base uniteach
Package units10
Usage quantity–
UNSPSC32000000
BrandABB
