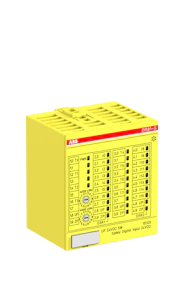

I/O CARD DI581-S-XC
Product number
4541452
I/O-S-XC,SIL3/2 DI:8/16
Digital input module. Safety. 16SDI, 16SDI SIL2/ 8SDI SIL3, 24VDC, 1-wire, 8 pulse output (DI581-S-XC)
Product details
Technical specifications
Voltage type of supply voltageDC
Number of digital inputs16
Digital inputs configurabletrue
Digital outputs configurablefalse
Input current at signal 17 mA
Permitted voltage at input0 ... 30 V
Type of voltage (input voltage)DC
Short-circuit protection, outputs availablefalse
Redundancyfalse
Type of electric connectionOther
Time delay at signal change1 ... 500 ms
Suitable for safety functionstrue
SIL according to IEC 615082
Performance level according to EN ISO 13849-1None
Appendant operation agent (Ex ia)false
Product codes
SAPCYQ819
PLC4541452
STK4541452
GTIN/EAN4016779866170
Manufacturer part number1SAP484000R0001
Vendor material number1SAP484000R0001
Basic information
Package measurements (L x W x H)62 x 67.5 x 76 mm
Package volume0.318 l
Package weight0.123 kg
Base uniteach
Package units1
Usage quantity–
BrandABB
