FREQUENCY CONVERTER IP21 ACS580-01-206A-4 110kW
Product number
4101141
400V/3-fas/IP21/110kW/206A

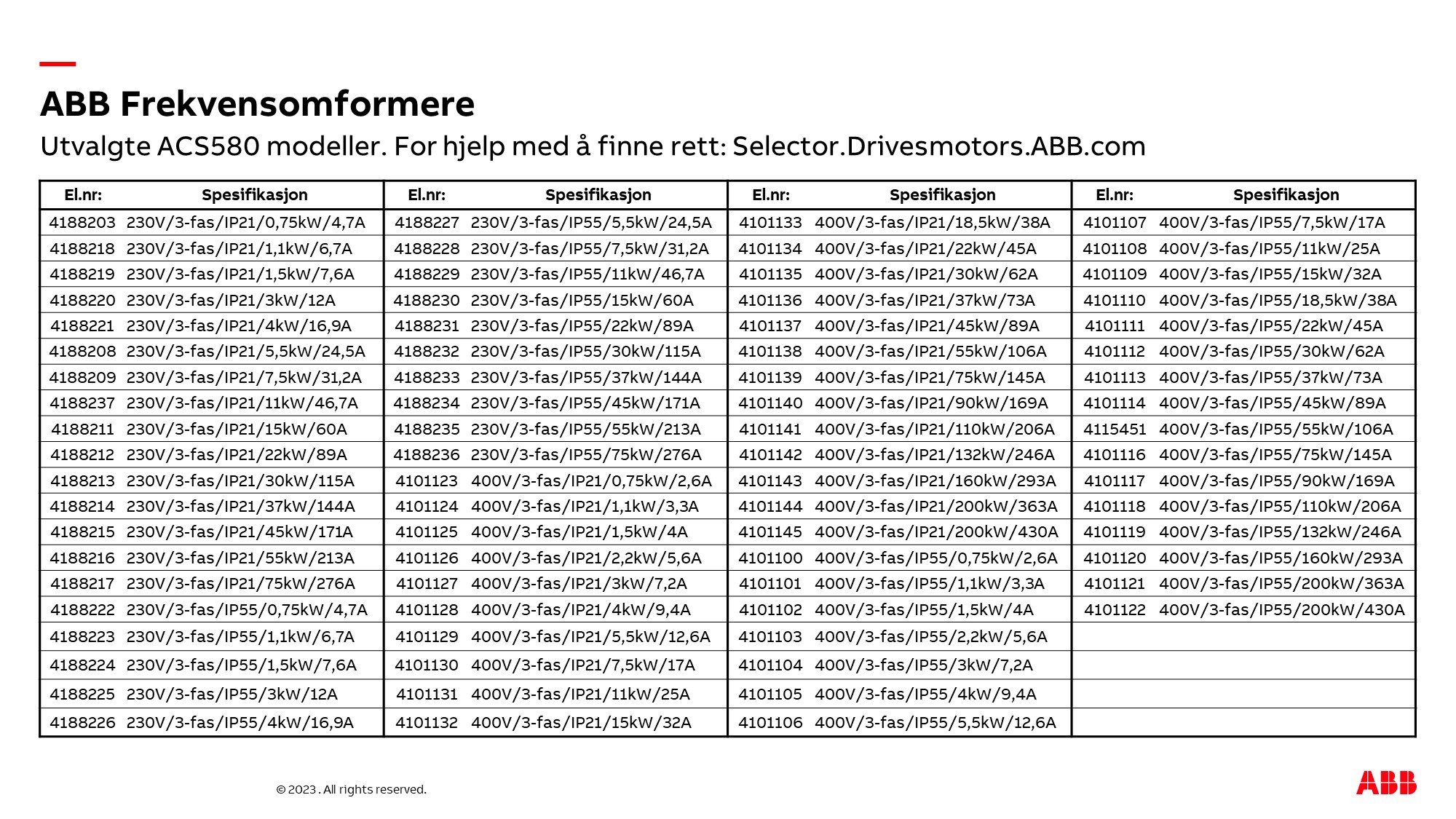

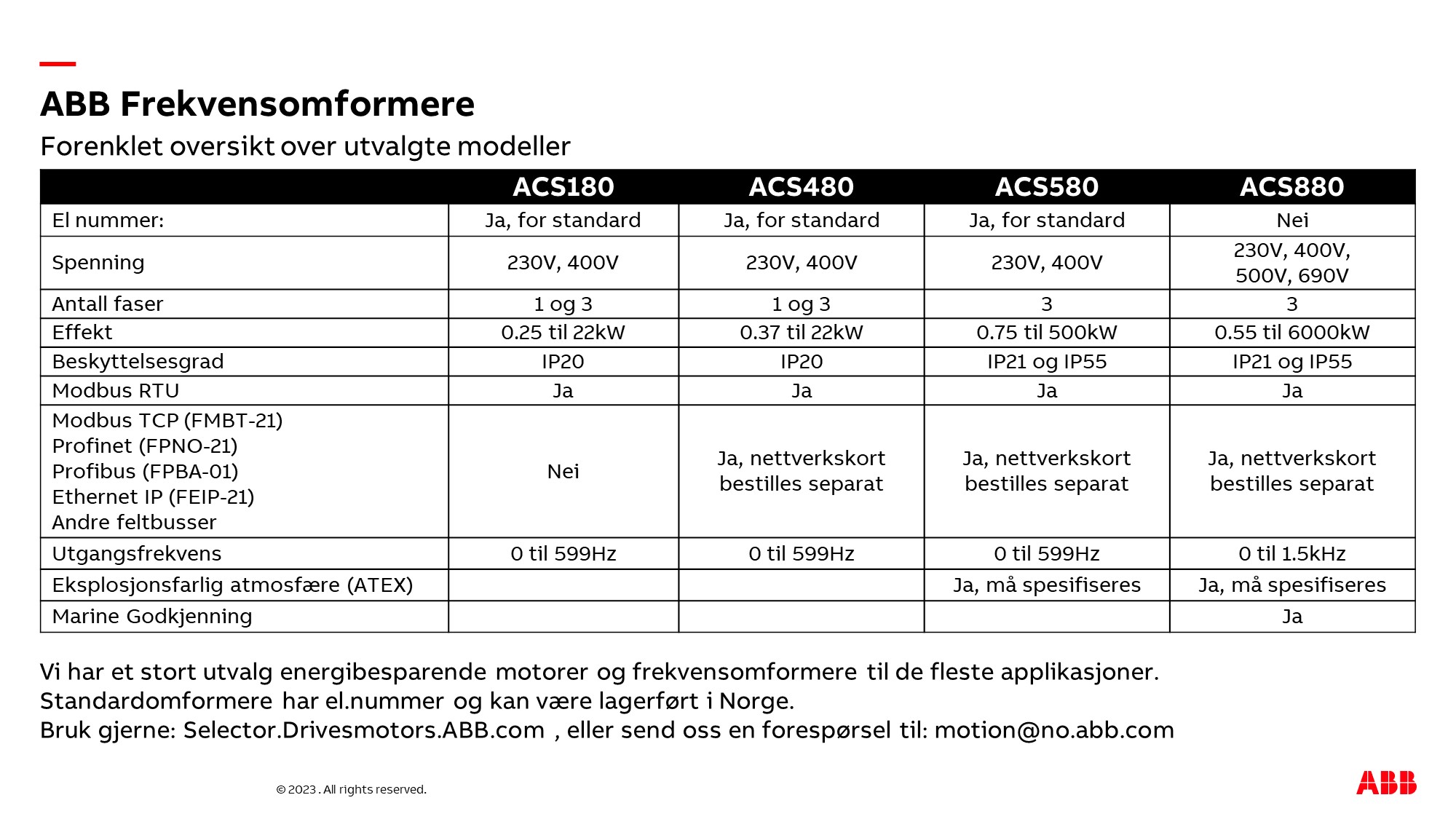

ACS580 er en serie med frekvensomformere som passer utmerket i de fleste industrier. Dette er ikke vår toppmodell(ACS880), men har samtidig mye av samme funksjonliteten for krevende applikasjoner. Bruk ETIM dataen her for å finne rett modell, eller "ABB Drive and Motor Selector"
Product details
Technical specifications
Mains voltage380 ... 480 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency500 Hz
Max. output voltage480 V
Nominal output current I2N206 A
Max. output at quadratic load at rated output voltage110 kW
Max. output at linear load at rated output voltage110 kW
Power consumption2785 W
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs3
Product codes
SAPATG150
PLC4101141
STK4101141
GTIN/EAN6438177305620
Manufacturer part numberACS580-01-206A-4
Vendor material numberACS580-01-206A-4
Basic information
Package measurements (L x W x H)370 x 284 x 880 mm
Package volume93.838 l
Package weight55 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121007
BrandABB
