Frekvensomformer ACS580-01-276A-2+B056
Product number
4188236
230V/3-fas/IP55/75kW/276A

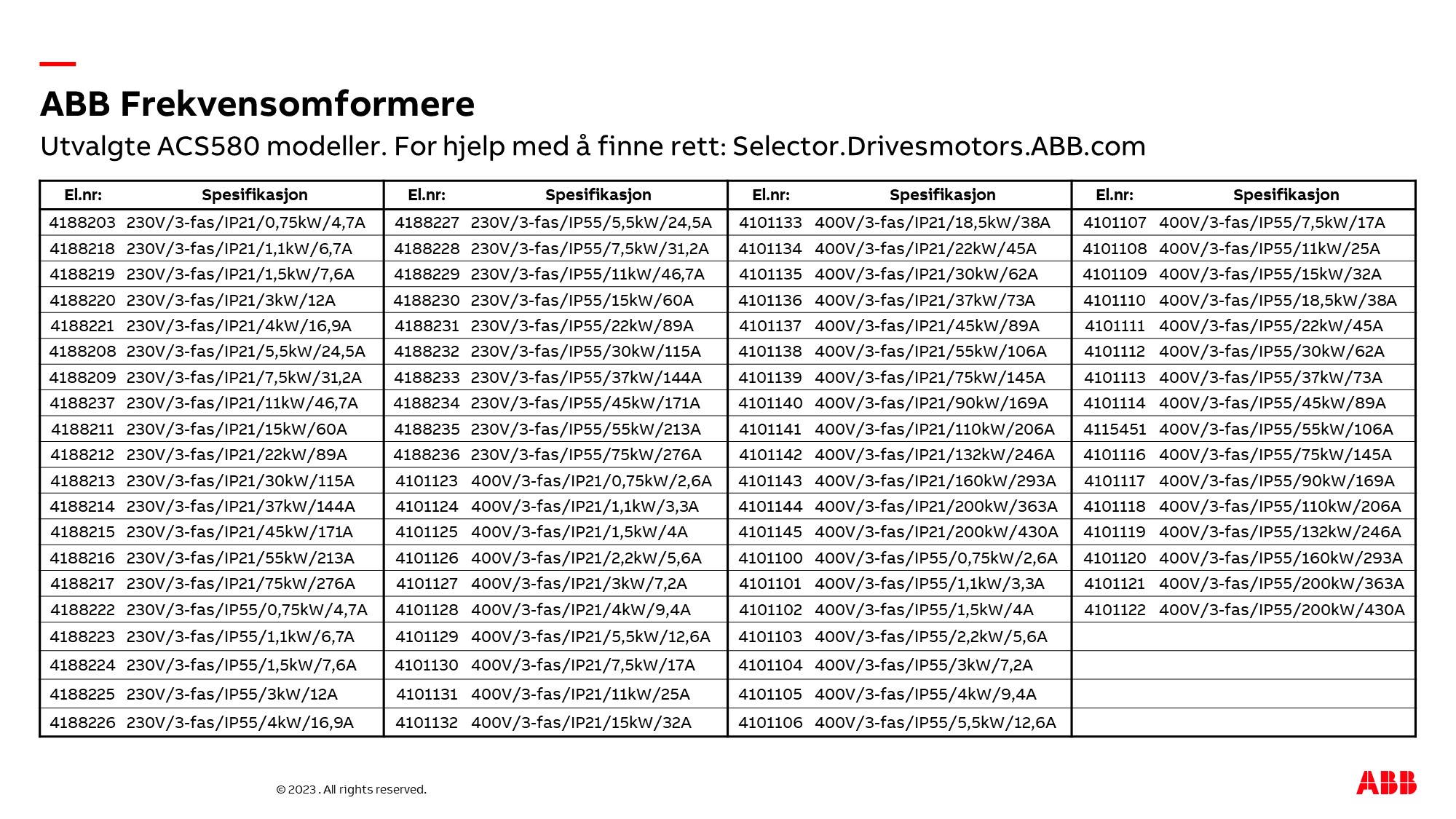

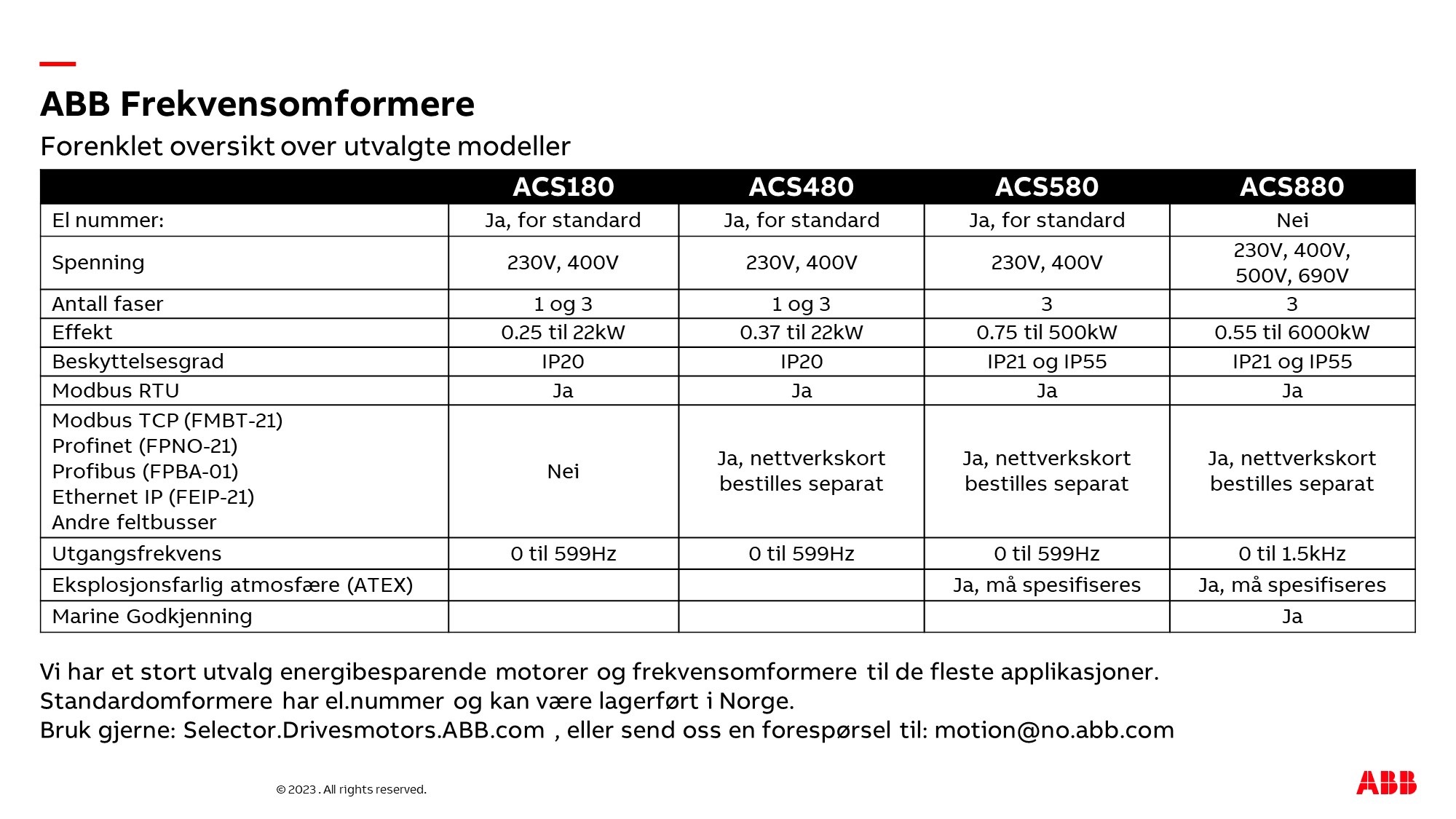

ACS580 er en serie med frekvensomformere som passer utmerket i de fleste industrier. Dette er ikke vår toppmodell(ACS880), men har samtidig mye av samme funksjonliteten for krevende applikasjoner. Bruk ETIM dataen her for å finne rett modell, eller "ABB Drive and Motor Selector"
Product details
Technical specifications
Mains voltage200 ... 240 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency500 Hz
Max. output voltage240 V
Nominal output current I2N276 A
Max. output at quadratic load at rated output voltage75 kW
Max. output at linear load at rated output voltage75 kW
Power consumption3571 W
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs3
Product codes
SAPDFQ713
PLC4188236
STK4188236
GTIN/EAN6438177591450
Manufacturer part number3AXD50000417636
Vendor material number3AXD50000417636
Basic information
Package measurements (L x W x H)452 x 300 x 965 mm
Package volume130.854 l
Package weight77 kg
Base uniteach
Package units1
Usage quantity–
BrandABB
