New
Frekvensomformer ACS580-01-213A-2+B056
Product number
4188235
230V/3-fas/IP55/55kW/213A

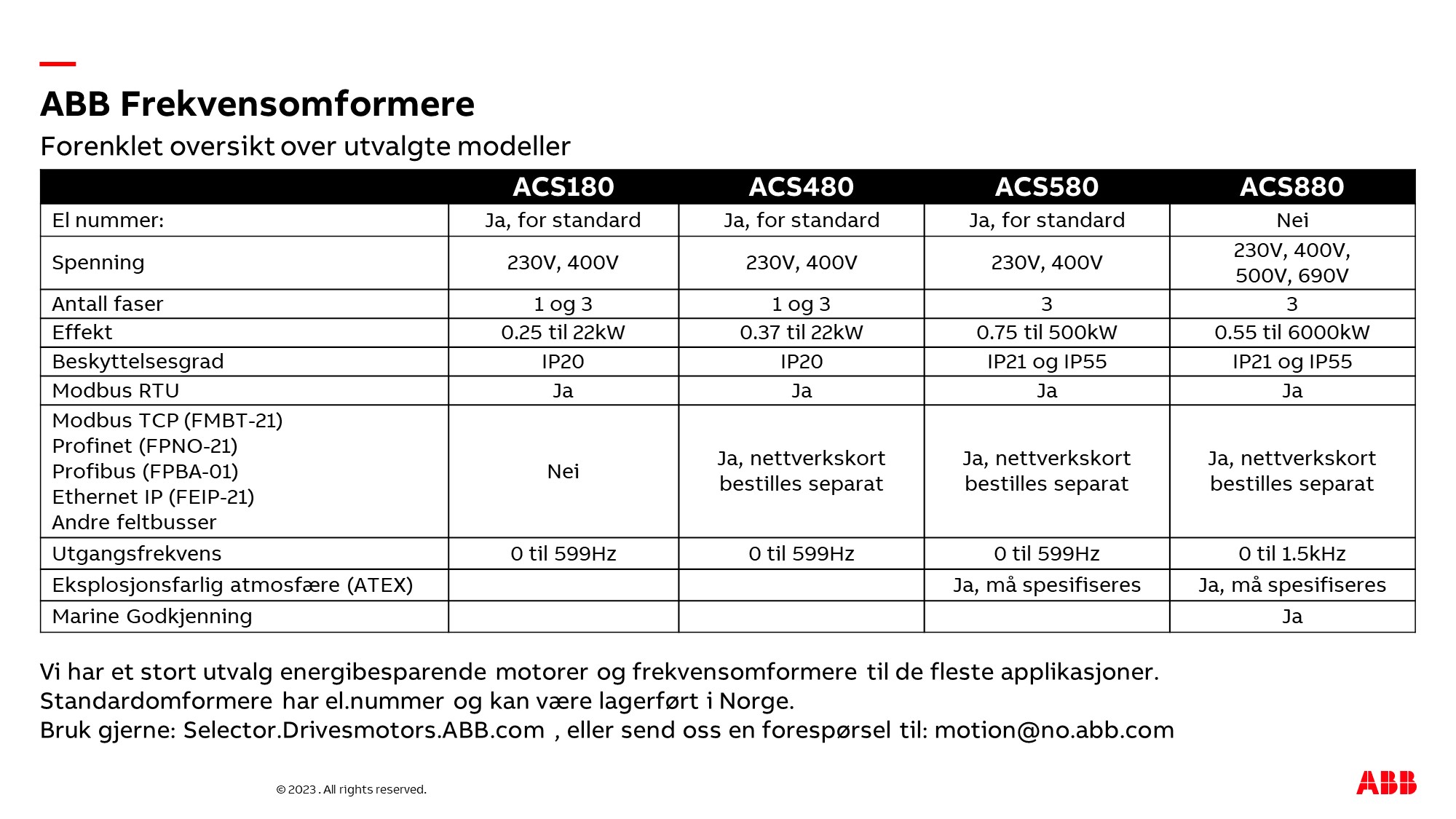

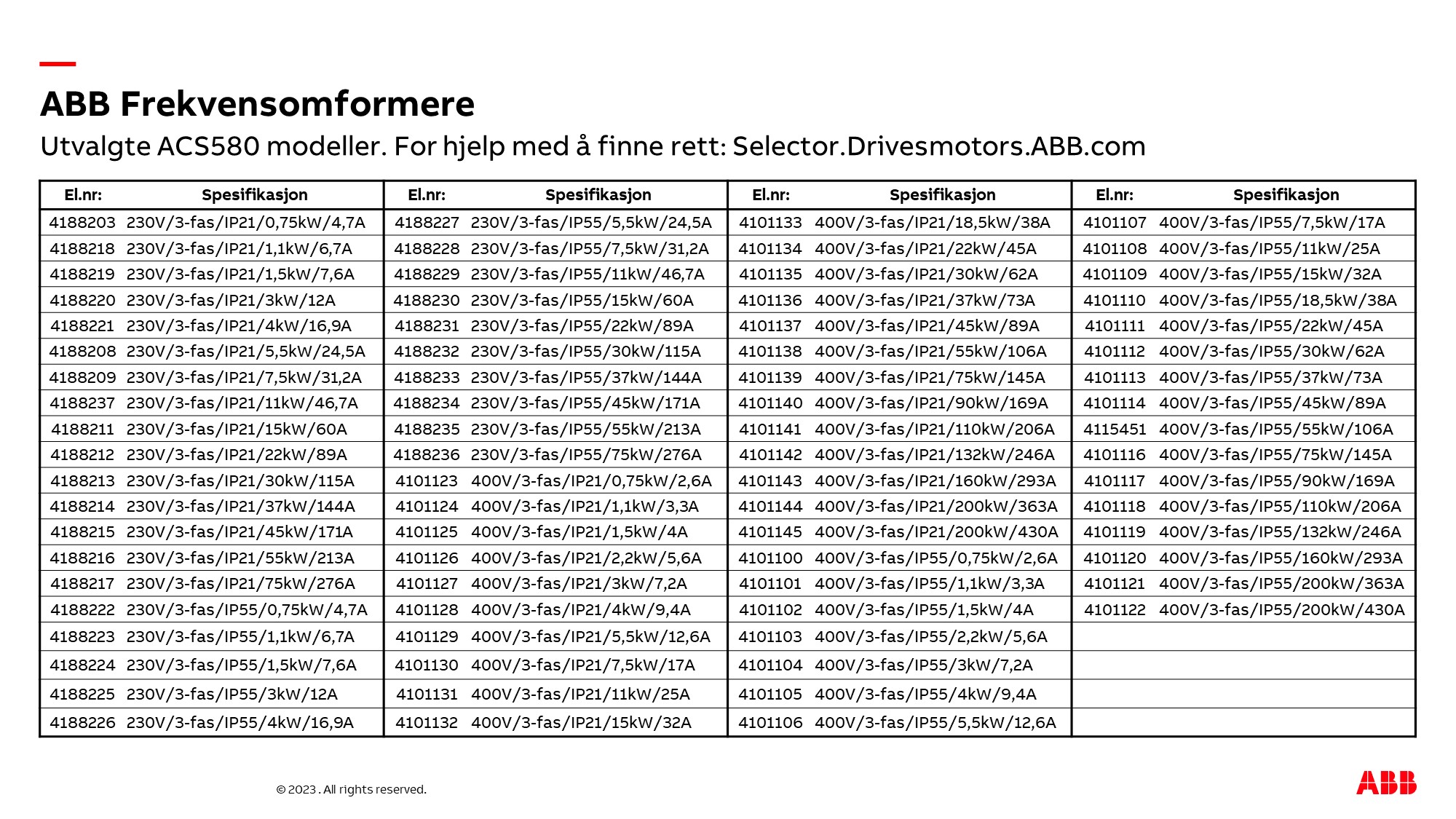

ACS580 er en serie med frekvensomformere som passer utmerket i de fleste industrier. Dette er ikke vår toppmodell(ACS880), men har samtidig mye av samme funksjonliteten for krevende applikasjoner. Bruk ETIM dataen her for å finne rett modell, eller "ABB Drive and Motor Selector"
Product details
Technical specifications
Mains voltage200 ... 240 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency500 Hz
Max. output voltage240 V
Nominal output current I2N213 A
Max. output at quadratic load at rated output voltage55 kW
Max. output at linear load at rated output voltage55 kW
Power consumption2854 W
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs3
Product codes
SAPDFQ712
PLC4188235
STK4188235
GTIN/EAN6438177591443
Manufacturer part number3AXD50000417629
Vendor material number3AXD50000417629
Basic information
Package measurements (L x W x H)381 x 284 x 880 mm
Package volume95.22 l
Package weight56 kg
Base uniteach
Package units1
Usage quantity–
BrandABB
