Frekvensomformer ACS580-01-089A-2+B056
Product number
4188231
230V/3-fas/IP55/22kW/89A

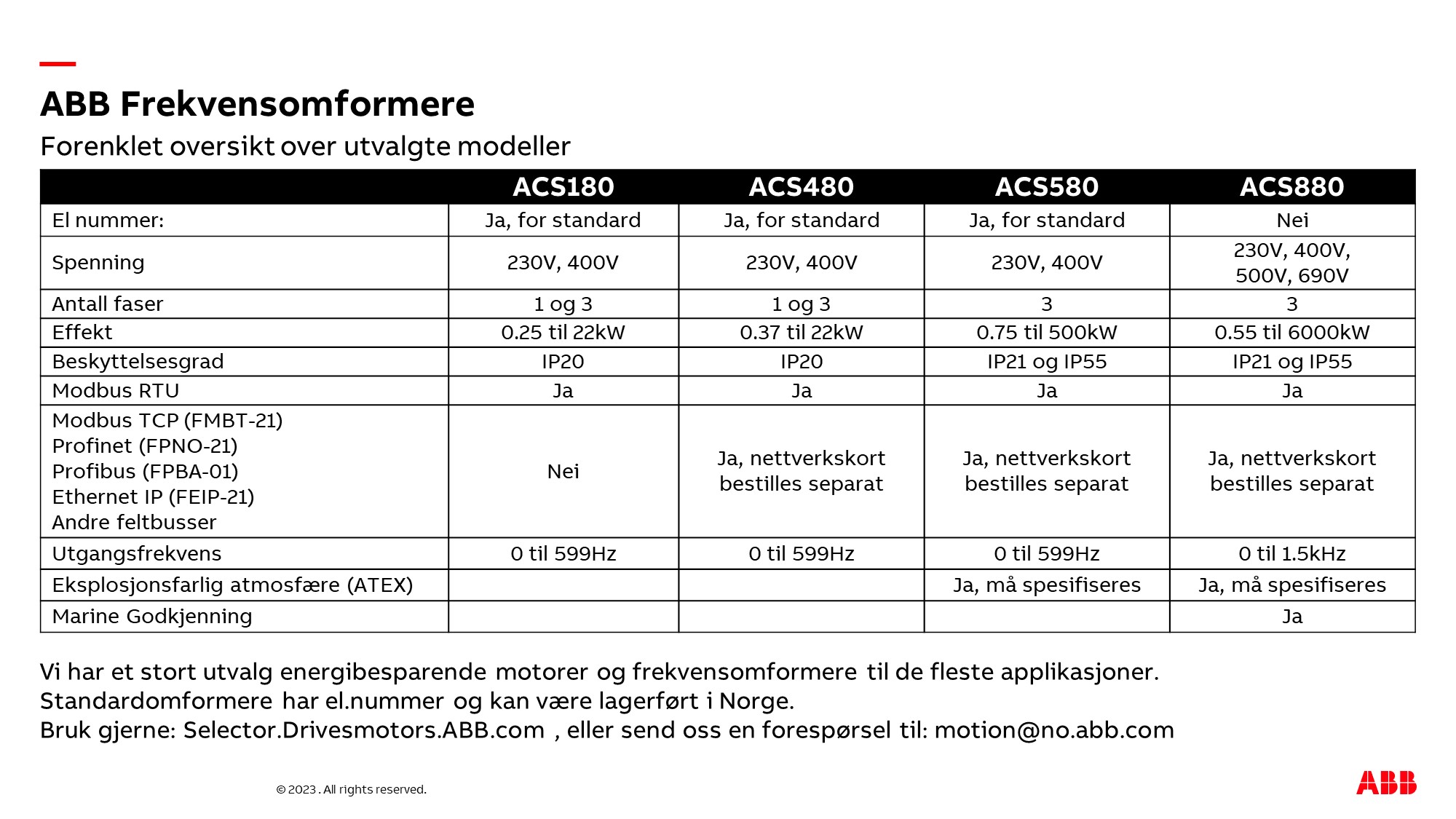

ACS580 er en serie med frekvensomformere som passer utmerket i de fleste industrier. Dette er ikke vår toppmodell(ACS880), men har samtidig mye av samme funksjonliteten for krevende applikasjoner. Bruk ETIM dataen her for å finne rett modell, eller "ABB Drive and Motor Selector"
Product details
Technical specifications
Mains voltage200 ... 240 V
Mains frequency50/60 Hz
Number of phases input3
Number of phases output3
Max. output frequency500 Hz
Max. output voltage240 V
Nominal output current I2N89 A
Max. output at quadratic load at rated output voltage22 kW
Max. output at linear load at rated output voltage22 kW
Relative symmetric net frequency tolerance5 %
Relative symmetric net voltage tolerance10 %
Number of analogue outputs2
Number of analogue inputs2
Number of digital outputs3
Number of digital inputs6
Product codes
SAPDBB764
PLC4188231
STK4188231
GTIN/EAN6438177591405
Manufacturer part number3AXD50000417582
Vendor material number3AXD50000417582
Basic information
Package measurements (L x W x H)835 x 320 x 450 mm
Package volume120.24 l
Package weight36.36 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121007
BrandABB
