CONTACTOR AF09-30-10-13
Product number
4117500
KONTAKTOR AF09-30-10-13 100-250VA/DC
AF09 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Product details
Technical specifications

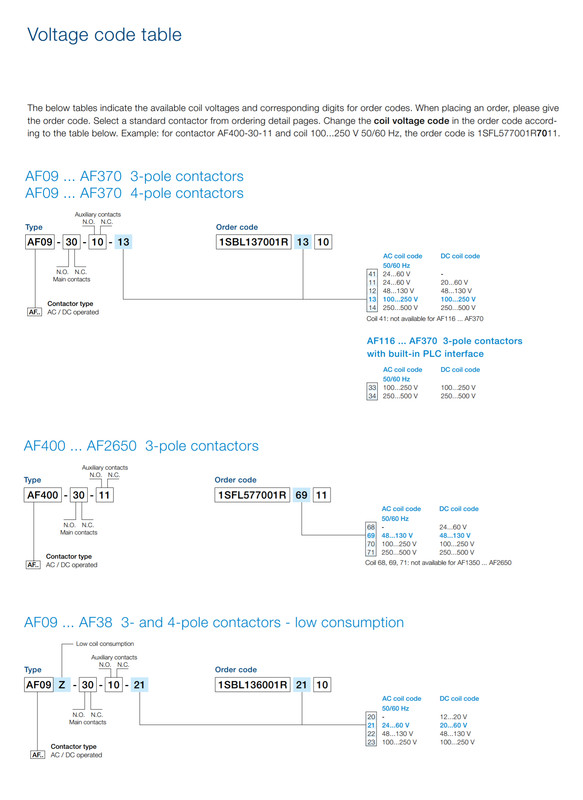

Rated control supply voltage AC 50 Hz100 ... 250 V
Rated control supply voltage AC 60 Hz100 ... 250 V
Rated control supply voltage DC100 ... 250 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Operating voltage AC 50 Hz690 ... 690 V
Operating voltage AC 60 Hz690 ... 690 V
Rated operation current Ie at AC-1, 400 V25 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation power at AC-3, 400 V4 kW
Rated operation power NEMA3.729 kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Product codes
SAPAJL462
PLC4117500
STK4117500
GTIN/EAN3471523110038
Manufacturer part numberAF09-30-10-13
Vendor material number1SBL137001R1310
Basic information
Package measurements (L x W x H)85 x 47 x 80 mm
Package volume0.32 l
Package weight0.325 kg
Base uniteach
Package units1 / 1296
Usage quantity–
UNSPSC39121529
BrandABB
