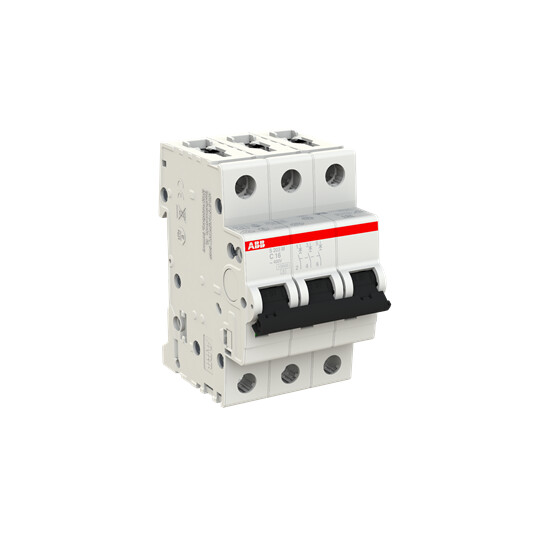

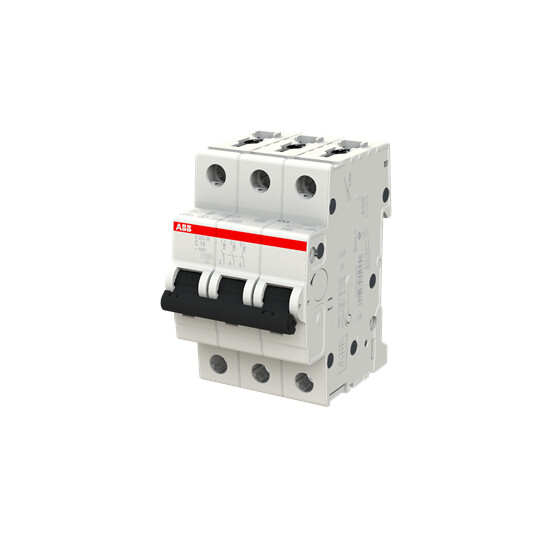

CIRCUIT BREAKER S203M-C16
Product number
1665545
DVÄRGBRYTARE S203M C16
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current16 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 ... 60 Hz
Power loss7.5 W
Product codes
SAPACU164
PLC1665545
STK1665545
GTIN/EAN4016779550451
Manufacturer part numberS203M-C16
Vendor material number2CDS273001R0164
Basic information
Package measurements (L x W x H)69 x 52.5 x 88 mm
Package volume0.319 l
Package weight0.375 kg
Base uniteach
Package units1 / 36 / 36
Usage quantity–
UNSPSC39121603
BrandABB
