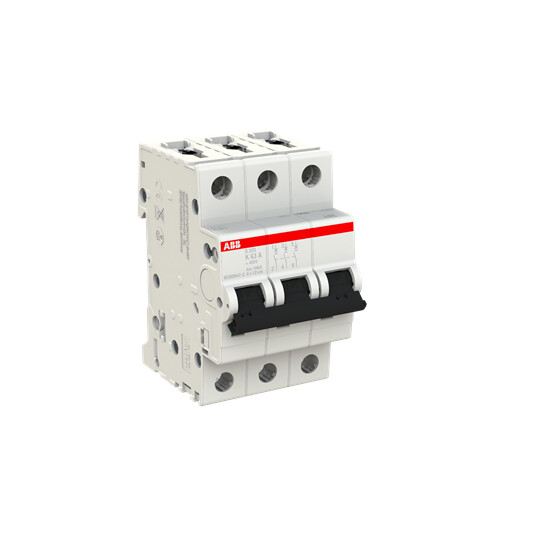

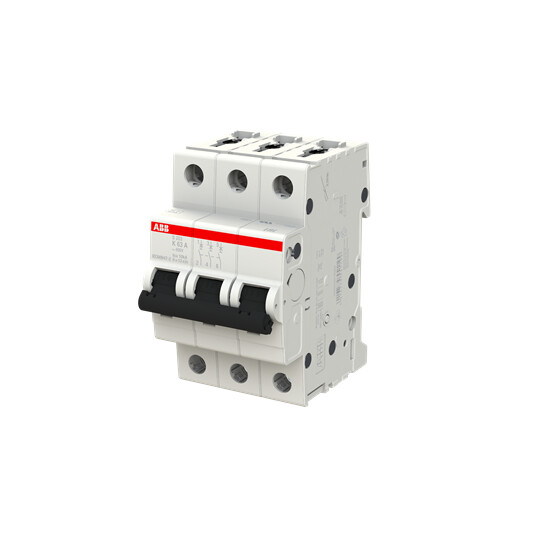

CIRCUIT BREAKER S203-K63
Product number
1665503
S203, 3pol, 63A, K-karakteristikk
AUTOMAT S203-K 63 AUTOMAT S203-K 63
Product details
Technical specifications
Built-in depth69 mm
Release characteristicK
Number of poles (total)3
Number of protected poles3
Rated current63 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 ... 60 Hz
Power loss13.2 W
Product codes
SAPACU013
PLC1665503
STK1665503
GTIN/EAN4016779551199
Manufacturer part numberS203-K63
Vendor material number2CDS253001R0607
Basic information
Package measurements (L x W x H)60 x 94 x 77 mm
Package volume0.434 l
Package weight0.545 kg
Base uniteach
Package units1 / 36
Usage quantity–
UNSPSC39121603
BrandABB
