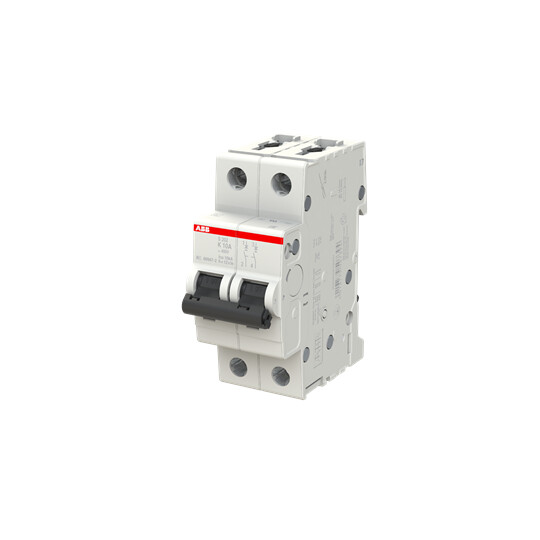

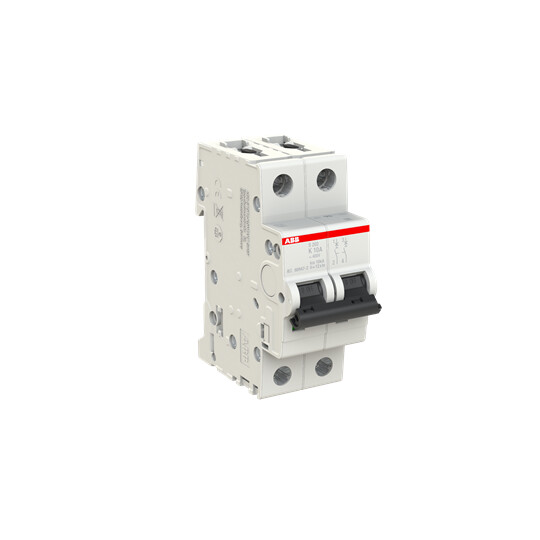

CIRCUIT BREAKER S202-K10
Product number
1665178
S202 K10 INTERRUTTORE AUTOMATICO 6KA 2P
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Product details
Technical specifications
Built-in depth69 mm
Release characteristicK
Number of poles (total)2
Number of protected poles2
Rated current10 A
Rated voltage400 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 ... 60 Hz
Power loss2.8 W
Product codes
SAPACT991
PLC1665178
STK1665178
GTIN/EAN4016779507394
Manufacturer part numberS202-K10
Vendor material number2CDS252001R0427
Basic information
Package measurements (L x W x H)80 x 85 x 35 mm
Package volume0.225 l
Package weight0.254 kg
Base uniteach
Package units1 / 60
Usage quantity–
UNSPSC39121603
BrandABB
