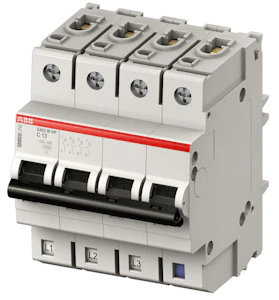

AUTOMAT S403 M-C 40 NP

Product number
1623516
AUTOMAT S403 M-C 40 NP
S 400 M-C karakteristikk Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter resistive og induktive laster med lav startstrøm. Applikasjoner: Bolig, forretningsbygg og industri. Standard: IEC/EN 60898, IEC/EN 60947-2 Icn=10 kA

Product details

Technical specifications

Built-in depth75 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current40 A
Rated voltage415 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 ... 60 Hz
Power loss14.8 W

Product codes

SAPDBK107
PLC1623516
STK1623516
GTIN/EAN7612270103966
Manufacturer part number2CCS573103R8404
Vendor material number2CCS573103R8404

Basic information

Package measurements (L x W x H)95 x 100 x 70 mm
Package volume0.665 l
Package weight0.5 kg
Base uniteach
Package units3
Usage quantity
UNSPSC39121616
BrandABB
