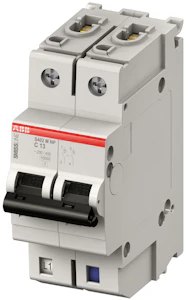

AUTOMAT S401 M-C 32 NP
Product number
1623464
AUTOMAT S401 M-C 32 NP
S 400 M-C karakteristikk Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter resistive og induktive laster med lav startstrøm. Applikasjoner: Bolig, forretningsbygg og industri. Standard: IEC/EN 60898, IEC/EN 60947-2 Icn=10 kA
Product details
Technical specifications
Built-in depth82 mm
Release characteristicC
Number of poles (total)2
Number of protected poles2
Rated current32 A
Rated voltage240 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V15 kA
Frequency50 ... 60 Hz
Power loss6.4 W
Product codes
SAPDBK105
PLC1623464
STK1623464
GTIN/EAN7612270103485
Manufacturer part number2CCS571103R8324
Vendor material number2CCS571103R8324
Basic information
Package measurements (L x W x H)91 x 84 x 36 mm
Package volume0.275 l
Package weight0.28 kg
Base uniteach
Package units5
Usage quantity–
UNSPSC39121616
BrandABB
