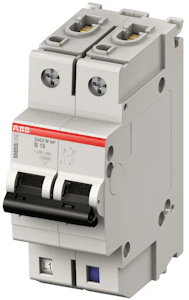

AUTOMAT S401 M-B 16 NP
Product number
1623447
AUTOMAT S401 M-B 16 NP
S 400 M-B karakteristikk Funksjon: Beskyttelse og overvåkning mot overlast og kortslutning. Beskytter mennesker og lange kabler i TN- og IT-systemer. Applikasjoner: Bolig, forretningsbygg og industri. Standard: IEC/EN 60898 Icn=10 kA
Product details
Technical specifications
Built-in depth82 mm
Release characteristicB
Number of poles (total)2
Number of protected poles2
Rated current16 A
Rated voltage230 V
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50 ... 60 Hz
Power loss4.4 W
Product codes
SAPDBK077
PLC1623447
STK1623447
GTIN/EAN7612270103348
Manufacturer part number2CCS571103R8165
Vendor material number2CCS571103R8165
Basic information
Package measurements (L x W x H)91 x 84 x 36 mm
Package volume0.275 l
Package weight0.282 kg
Base uniteach
Package units5
Usage quantity–
UNSPSC39121616
BrandABB
