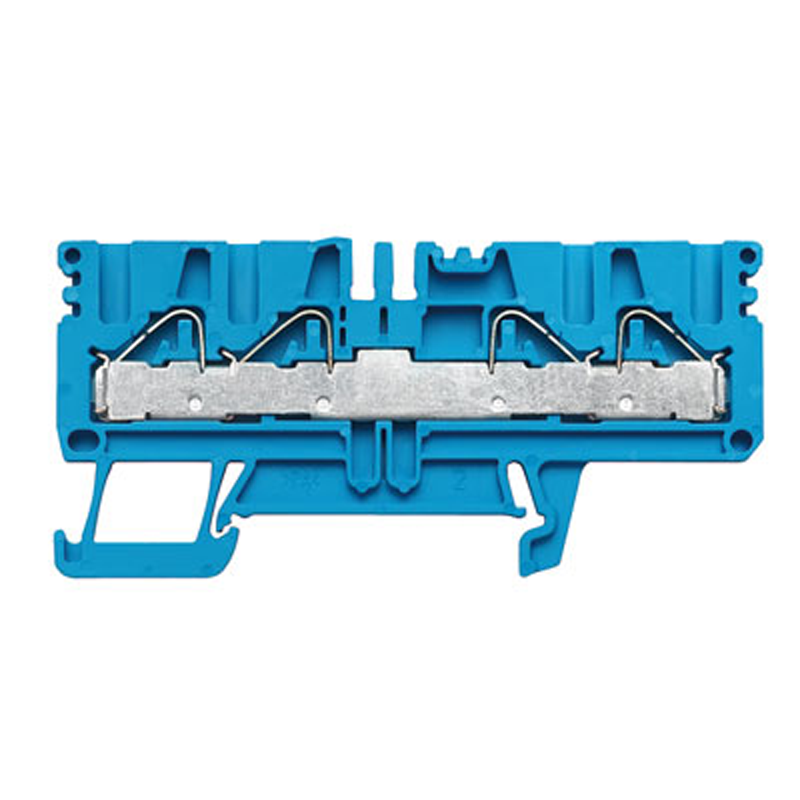

TERMINAL BLOCK PDU 2,5/4 4AN BL 1896250000
Product number
1209329
Feed-through terminal block, PUSH IN, 4 mm², 800 V, 32 A, Number of connections: 4
Terminal for connection or joining of wires, cores and cables with a durable secure contact. Hardened steel for the mechanical strength and high-grade tin-coated copper for optimum conductivity.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 ... 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 ... 4 mm²
Connectable conductor cross section solid-core0.5 ... 6 mm²
Rated current In32 A
Rated voltage800 V
Type of electrical connection 1Plug-in connection
Number of levels1
Number of clamp positions per level4
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-50 ... 120 °C
Inflammability class of insulation material according to with UL94V0
Width36 mm
Explosion-tested version 'Ex e'true
Closing plate requiredtrue
Product codes
SAPANO228
PLC1209329
STK1209329
GTIN/EAN4032248511372
Manufacturer part number1896250000
Vendor material number1896250000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.02 l
Package weight0.012 kg
Base uniteach
Package units1 / 100
Usage quantity–
UNSPSC39121410
BrandWEIDMÜLLER
