eaton Fr.plate, hxb=300x400, bpz-fp-400/300-bl-w

FR.PLATE, HXB=300X400, BPZ-FP-400/300-BL-W

Product number
2459454

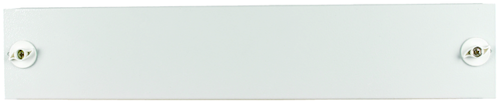

Front plate, for HxW = 300 x 400 mm, blind, white
Service distribution system—Profi Plus (floor standing distribution board, surface-mounted and flush-mounted distribution boards). Front blanking plate, BPZ-FP-..-BL, needed to cover reserve areas and protect unused areas. Width 400 mm, height 300mm, steel plate, powder-spray painted, RAL9016, metal front plate with electrical contact with enclosure, equipment supplied: 1 front plate
Product codes
Basic information
Technical specifications
Documents (0)
SAPCGN311
PLC2459454
STK2459454
GTIN/EAN4015081080342
Manufacturer part number108400
Vendor material number2459454
Package measurements (L x W x H)35 x 325 x 305 mm
Package volume3.469 l
Package weight1.5 kg
Package units1
Usage quantity
BrandEATON
Height299 mm
MaterialSteel
Number of height units0
Suitable for enclosure building height0 mm
Suitable for enclosure building width400 mm
Surface finishingPowder coating
Width320 mm
No documents available
